Commercial and Industrial Meters

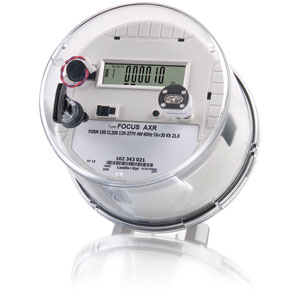

E330 FOCUS AX Polyphase

The E330 FOCUS AX Polyphase meter provides a cost-efficient alternative for light commercial metering applications that do not require the extensive functionality of the S4e meter. As an addition to the FOCUS family of meters, the AX Polyphase brings the… Mehr erfahren

Kontaktieren Sie uns
Eigenschaften

Key features include:
• Digital Multiplication Measurement technique
• Non-volatile memory
• Designed for a 20+ year life
• Meets or exceeds industry and ANSI standards
• Uses ANSI protocol (between meter and advanced metering device)
• 6 digit LCD and 3 Alpha ID
• Selectable meter multiplier
• Event log of 500+ entries
• 77 kb of load profile memory, 1–8 channels
• Advanced second generation over-the-air-flashable firmware

Funktionen

A single circuit board design, mounted at the front of the meter allows room for modular AMI communications or a KYZ output board. Highly accurate load performance and the use of field-proven Digital Multiplication Measurement Technique ensure reliability and dependability during the entire life of the meter. The FOCUS AX Polyphase meter is available for both self-contained and transformer-rated meter forms and includes the ASIC, non-volatile memory, selectable metrics, flexible display functionality, an optional KYZ output, configuration port, and a customer program option.

Verfügbarkeit
  • Americas
  • Asia-Pacific
